Product Description

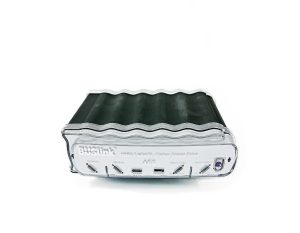

CipherShield 512-Bit FIPS 140-2 Encrypted External SSD

USB 3.2 Gen 2/eSATA | Dual-Key 2FA (Two-Factor Authentication) | HIPAA & TAA Compliant | USB-Powered

Next-Gen Speed, Security & Portability

With USB 3.2 Gen 2, the CipherShield Dual-Key Encrypted SSD delivers 10Gbps transfer speeds, doubling the performance of previous USB 3.0 (USB 3.2 Gen 1) drives. High-performance SSD technology makes transferring large files faster and more efficient.

Lightweight, Durable & Eco-Friendly

Encased in a compact 2.5” metal alloy enclosure, this SSD is: ✔ USB-powered – No external adapter required ✔ Lightweight & Portable – Easy to transport ✔ Eco-friendly – Less plastic, more recyclable materials ✔ Plug & Play – Ready to use in minutes ✔ Backward Compatible – Supports USB 3.0 & USB 2.0

CipherShield Dual-Key Encryption: Maximum Data Protection

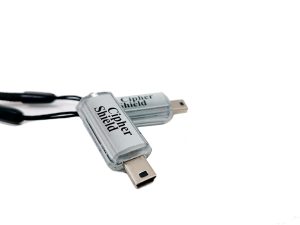

The CipherShield 2FA system requires two unique CipherKeys for authentication, offering two key models for different security needs:

• Colateral Mode: Two unique keys can be inserted and removed while powered on. The drive stays authenticated until powered off. Ideal for environments where manual key insertion is feasible, such as local offices.
• Bilateral Mode: Two unique keys must remain inserted for authentication. The drive locks when a key is removed. Perfect for data centers and remote locations where manual access is restricted.

Why Choose CipherShield Encryption?

✔ Secure Team Collaboration – Protects legal cases, financial records, and R&D blueprints ✔ Multi-User Access – Ensures only authorized personnel can access data ✔ Auto-Lock Protection – Data is instantly secured when keys are removed or power is off ✔ Hardware-Based AES Encryption – FIPS 140-2 Level 2 compliant for industrial-grade security ✔ No Passwords or PINs Required – Simply insert the keys to access data ✔ OS-Independent Encryption – Even if the drive is removed and connected via SATA, data remains locked Bundled with four CipherKeys (registration required for duplication), this SSD is the ultimate high-speed, secure storage solution for professionals.

Uncompromising Security & Performance

✔ Dual-Key 2FA Protection – Requires two CipherKeys for authentication ✔ Bundled with 4 CipherKeys – Includes two sets of unique hardware keys ✔ 512-Bit AES Encryption – Uses a 2-stage AES-256 cascade for advanced security ✔ Full Disk Encryption (FDE) – Real-time encryption with zero performance loss ✔ HIPAA & Sarbanes-Oxley Compliant – Meets strict data privacy regulations ✔ TAA & Section 889 Compliant – Approved for government use

Reliable & User-Friendly

✔ Rugged SSD Design – Shock-resistant and durable ✔ Plug & Play – No drivers, PINs, or complicated setup required ✔ OS-Independent – Works with Windows & Linux (Mac requires reformatting)

Fast & Versatile Connectivity

✔ USB 3.2 Gen 2 & eSATA – Ultra-fast speeds:

• USB 2.0: Up to 480 Mbps
• USB 3.2 Gen 1: Up to 5 Gbps
• USB 3.2 Gen 2: Up to 10 Gbps ✔ USB-Powered – No external power adapter needed (eSATA powered via USB)

Compact & Portable

📏 Drive Dimensions: 4.63" x 5.5" x 1.75" (0.8 lb) 📦 Shipping Dimensions: 9.63" x 6.82" x 4" (2 lb)

Regulatory & Classification Codes

• ECCN: 5A992.c
• HTS: 8471705065

System Requirements

✅ USB 3.2 Gen 2 SuperSpeed+ Port (Required for 10Gbps speeds) ✅ Backward Compatible with USB 3.1 Gen 1 & USB 2.0 ✅ USB-Powered – No external power required ✅ eSATA Port – Alternative connectivity option

Operating System Compatibility

• Mac: macOS 10.4 or later
• Windows: 11, 10, 8, 7, Vista, XP
• Windows Server: 2025, 2020, 2019, 2016, 2012, 2008, 2003
• Linux: Fully supported

🔹 Note:

• Drives 2TB or smaller support Windows XP
• Drives larger than 2TB require GPT support (Not compatible with Windows XP)

Package Contents

✔ CipherShield Dual Keys 512-bit Encrypted External Mini SSD (USB 3.2 Gen 2/eSATA) ✔ 4 CipherKeys – Secure dual-key authentication ✔ USB A to B Cable ✔ eSATA Cable ✔ Power Adapter (optional) ✔ User Manual Everything you need for secure, high-speed, and hassle-free data protection.
